CNC milling is a computer-controlled machining process that uses rotating cutting tools to remove material from a workpiece, producing parts with high precision and complex geometries. It has become a vital component of modern manufacturing, delivering efficiency, scalability, and repeatability. Unlike manual milling, which depends heavily on the operator’s skill, CNC milling leverages automation to produce parts faster and with greater consistency, reducing errors and production waste.
The process is ideal for both prototype development and mass production, thanks to its flexibility in working with a wide range of materials, including metals, plastics, and composites. CNC milling can handle 2D, 3D, and multi-axis designs, enabling manufacturers to create intricate shapes, angled cuts, and smooth finishes. Whether used for simple parts or complex assemblies, CNC milling has established itself as an indispensable technology in industries such as automotive, aerospace, electronics, and medical devices.
Modern CNC milling systems incorporate advanced software, robotics, and AI-driven technologies, making them even more precise and automated. With features like real-time monitoring, adaptive programming, and multi-tool changers, these machines deliver consistent quality and reduced lead times. Their ability to scale production without compromising quality ensures that CNC milling continues to meet the evolving demands of global manufacturing industries.
History and Evolution of CNC Milling
The history of milling machines dates back to the early 19th century, when manual machines were used to shape metal and wood components. Early milling machines operated with simple hand controls, relying on the operator’s skill to produce accurate cuts. Over time, mechanized systems replaced manual tools, improving efficiency and enabling higher volumes of production. By the mid-20th century, advancements in numerical control (NC) paved the way for CNC machining, transforming the precision manufacturing industry.
Numerical control systems initially used punched tape to guide the machine’s movements. However, with the advent of computer technology in the 1960s, CNC systems emerged, allowing for greater automation and complex programming capabilities. This development revolutionized industries by enabling high-precision production of intricate components without manual intervention. By integrating CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software, CNC milling machines became capable of handling detailed designs and multi-axis operations with minimal errors.
Today, CNC milling has evolved further with AI-based controls, robotic automation, and cloud-based systems that enable remote monitoring and predictive maintenance. These innovations have made CNC milling more efficient, cost-effective, and versatile, catering to industries like die casting China, plastic injection molding companies, and overmolding processes. As technology advances, CNC milling continues to be a driving force in precision engineering.
How CNC Milling Works – Step-by-Step Process
CNC milling is a precise and automated machining process used to create complex parts by removing material from a workpiece using rotating cutting tools. The process is guided by computer numerical control (CNC), ensuring high accuracy, repeatability, and efficiency. Each stage of the process plays a critical role in achieving the desired shape, dimensions, and surface finish. Below is a detailed explanation of each step involved in the CNC milling process.
1. Design and Programming – Converting Concepts into Code
The first step in CNC milling involves designing the part using computer-aided design (CAD) software. Engineers create 3D models of the desired components, specifying dimensions, features, and tolerances required for the final product. These digital designs allow for precise visualization and enable engineers to simulate the milling process, identifying potential errors before production begins.
Once the design is complete, it is transferred to computer-aided manufacturing (CAM) software, which converts the model into tool paths and generates G-code instructions. These instructions define the movements, cutting speeds, and tool changes needed to execute the design. CAM software also optimizes the cutting process, minimizing material waste and cycle times.
Modern CNC systems integrate simulation tools to test the machining sequence virtually. This step reduces the risk of collisions and ensures smooth tool transitions, improving production reliability. Once the program is verified, it is uploaded to the CNC controller, which directs the machine’s operations.
2. Material Preparation – Setting the Foundation for Precision
After programming, the raw material—commonly metal, plastic, or composite material—is cut to size and clamped securely onto the worktable of the milling machine. Proper alignment is crucial to ensure dimensional accuracy throughout the process. Fixtures, vises, and clamps are used to hold the material in place, preventing vibrations during cutting.
The workpiece undergoes pre-machining checks, including measurements and surface cleaning, to remove contaminants such as oil or debris that could affect adhesion and machining quality. Depending on the material type, additional treatments such as annealing or hardening may be applied to enhance machinability and structural integrity.
Modern CNC machines can also accommodate automated loading systems, which streamline material handling and improve production efficiency for high-volume manufacturing.
3. Machining Operations – Shaping the Workpiece

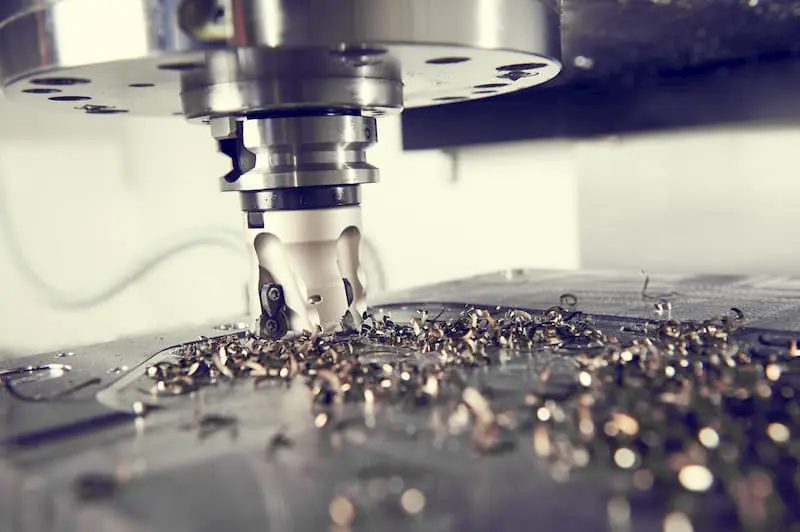

The milling process begins with the machine’s spindle rotating the cutting tool at high speeds, while the worktable moves along multiple axes (X, Y, and Z) to achieve the desired shape. Multi-axis CNC milling machines, including 3-axis, 4-axis, and 5-axis systems, allow for angled cuts, curved profiles, and complex geometries in a single setup, minimizing the need for manual adjustments.
Key machining operations include:
Facing: Creates flat surfaces by removing material from the top of the workpiece.
Contour Milling: Cuts along a predefined path to create profiles and grooves.
Drilling and Tapping: Adds holes and internal threads for assembly purposes.
Pocketing and Slotting: Removes material to form recesses, slots, and channels.
Engraving and Marking: Adds labels, logos, or identification numbers for customization.
During machining, coolants and lubricants are applied to reduce heat, prevent tool wear, and maintain cutting precision. The integration of automated tool changers allows the machine to switch between drills, end mills, and reamers without stopping, improving productivity.
4. Monitoring and Adjustments – Ensuring Accuracy in Real Time
Throughout the milling process, sensors and monitoring systems track tool performance, cutting speed, and material stability to maintain accuracy. Modern CNC machines use real-time feedback systems to detect and correct errors during machining, reducing the risk of defects.
Adaptive machining technologies analyze data from the sensors and make automated adjustments to compensate for tool wear, thermal expansion, or material inconsistencies. This feature ensures consistent quality even in large production runs.
For critical applications, such as medical implants or aerospace components, manufacturers often use laser scanners and coordinate measuring machines (CMMs) to verify dimensions and surface finishes after each stage of machining.
5. Post-Machining Processes – Refining the Final Product
Once machining is complete, the part undergoes post-machining processes to enhance appearance, strength, and performance. These steps include:
Deburring: Removes sharp edges and burrs formed during cutting, ensuring smooth surfaces.
Polishing and Grinding: Improves surface finishes for aesthetic appeal and corrosion resistance.
Coating and Plating: Adds protective layers, such as anodizing or powder coating, to increase durability and weather resistance.
Additional processes like sandblasting, painting, and heat treating may be applied based on the intended use of the component. For functional parts, thread tapping or press fitting is used to integrate assembly features.
Modern CNC machines often include built-in inspection systems to check surface roughness and dimensions, ensuring the parts meet tolerance specifications before being shipped.
6. Quality Control and Final Inspection – Verifying Precision
The last stage in the CNC milling process involves quality checks to verify that the final product meets design specifications and industry standards. Precision tools, such as calipers, micrometers, and coordinate measuring machines (CMMs), are used to confirm dimensional accuracy and surface finishes.
Additional tests include:
Stress Testing: Evaluates the component’s ability to withstand load-bearing conditions.
Non-Destructive Testing (NDT): Detects internal defects using ultrasound or X-ray technology.
Tolerance Verification: Ensures parts meet tight tolerances required in aerospace and medical applications.
Modern CNC milling integrates AI-powered inspection systems that allow for real-time quality control, reducing errors and improving production efficiency. These systems provide detailed reports and enable manufacturers to trace defects quickly, ensuring the highest standards of reliability and performance.
Key Components of CNC Milling Machines
CNC milling machines consist of several key components that work together to deliver precision machining. The spindle is the rotating component that holds and powers the cutting tools, ensuring high-speed machining for various materials. The worktable securely holds the workpiece, while fixtures and clamps provide stability during the cutting process.
The control unit processes G-code instructions, guiding the axes and tool movements with micro-level precision. Tool changers allow for automatic switching between different cutting tools, enabling the machine to perform multiple operations without interruption. Coolant systems maintain optimal temperatures, reducing tool wear and improving surface finishes. Finally, CAD/CAM software integrates design and manufacturing processes, ensuring seamless execution and error-free production.
Types of CNC Milling Machines
CNC milling machines are classified into several types based on their design, orientation, and capabilities. Vertical milling machines are the most common, with spindles aligned vertically, making them ideal for flat surfaces and contouring operations. These machines are widely used for precision machining in automotive and aerospace industries.
Horizontal milling machines feature spindles aligned horizontally, allowing for heavy-duty operations and deep cuts. These machines are suitable for large components like frames, shafts, and housings. Multi-axis CNC milling machines, such as 3-axis, 4-axis, and 5-axis systems, provide enhanced flexibility for creating complex geometries, angled cuts, and contoured designs in a single setup, improving efficiency and accuracy.
Materials Used in CNC Milling
CNC milling supports a wide range of materials, including metals, plastics, and composites, making it suitable for diverse applications. Aluminum is widely used for its lightweight properties, corrosion resistance, and machinability, making it ideal for automotive and aerospace components. Steel and stainless steel are preferred for structural parts requiring strength and durability.
Brass is commonly chosen for electrical applications due to its conductivity, while plastics such as nylon and PTFE offer chemical resistance for medical devices and consumer products. The flexibility to work with different materials ensures CNC milling can meet specific performance standards for custom designs and high-volume production.
Advantages of CNC Milling
High Precision and Accuracy – Consistent Quality Every Time
One of the most significant advantages of CNC milling is its ability to deliver high precision and repeatability, making it ideal for applications requiring tight tolerances. Unlike manual machining, which depends on the operator’s skill, CNC milling uses computer-controlled systems to execute pre-programmed designs with microscopic accuracy. This ensures that even the most intricate parts, such as medical implants, engine components, and aerospace fittings, meet exact specifications without deviation.
The precision of CNC milling machines can achieve tolerances as tight as ±0.001 inches, providing a level of accuracy that manual machines cannot match. Additionally, automated calibration systems and sensor-driven feedback loops allow CNC mills to make real-time adjustments during operations, further improving quality control. This precision eliminates the risk of human error and ensures that each part produced is identical, meeting the demands of mass production and custom manufacturing alike.
Scalability – From Prototyping to Mass Production
CNC milling is highly scalable, allowing manufacturers to produce both low-volume prototypes and large-scale production runs without compromising quality or efficiency. For prototyping, CNC machines enable rapid production of custom designs, giving engineers the ability to test and refine their parts before committing to full-scale production. This reduces the risk of costly design errors and speeds up the development cycle.
In mass production, CNC milling’s automation capabilities make it possible to produce hundreds or thousands of identical parts in a short timeframe, ensuring consistency and reliability. Automated tool changers, multi-axis setups, and robotic loading systems further streamline operations, enabling manufacturers to meet tight deadlines without sacrificing precision. As a result, CNC milling is suitable for industries requiring high-volume production, such as automotive, electronics, and medical device manufacturing.
Complex Design Capabilities – Creating Intricate Geometries
CNC milling excels at handling complex geometries and custom designs that would be impossible to achieve with manual machining. The process supports multi-axis operations, including 3-axis, 4-axis, and 5-axis machining, which allow for angled cuts, contours, holes, slots, and 3D surfaces in a single setup. This eliminates the need for multiple setups, saving time and labor costs while maintaining accuracy.
With the help of computer-aided design (CAD) and computer-aided manufacturing (CAM) software, CNC mills can create intricate patterns, pockets, and cavities with minimal errors. This capability makes CNC milling ideal for molds, tools, and die-casting parts, commonly used in plastic injection molding companies and die casting China manufacturers.
Additionally, multi-tool systems allow CNC mills to switch between cutting tools, enabling operations like drilling, threading, engraving, and grooving without manual intervention. This versatility makes CNC milling a preferred process for producing custom parts and high-performance components with complex geometries.
Material Versatility – Suitable for Diverse Applications
CNC milling is compatible with many materials, making it a versatile solution for industries requiring specific mechanical properties. CNC milling machines can handle materials that offer strength, lightweight properties, and chemical resistance from metals like aluminum, stainless steel, and brass to plastics such as nylon and PTFE.
Metals are often used in aerospace, automotive, and construction industries due to their strength-to-weight ratio and corrosion resistance. Plastics, on the other hand, are preferred for medical devices, consumer goods, and electronics due to their flexibility and cost-effectiveness. CNC milling also accommodates composite materials, which combine the durability of metals with the lightweight characteristics of plastics, making them ideal for modern engineering solutions.
Manufacturers can also perform surface treatments, such as anodizing, powder coating, and plating, to enhance appearance and durability. This compatibility with multiple materials makes CNC milling adaptable for applications ranging from custom prototypes to large-scale production runs.
Cost-Effectiveness – Lower Costs with Higher Efficiency
CNC milling is known for its cost efficiency, particularly in high-volume production. The automation involved minimizes the need for manual labor, reducing wages and human error, while precision cutting optimizes material usage and reduces waste. Unlike manual machining, where multiple setups may be required, CNC mills can execute complex operations in a single setup, saving time and money.
Additionally, CNC milling’s tool-changing capabilities and multi-axis features reduce the need for secondary operations, further improving productivity. Manufacturers benefit from faster turnaround times, which is essential for meeting tight deadlines in industries like automotive and medical devices.
Long-term savings offset the initial investment in CNC machines, as the process reduces scrap material, enhances production speed, and maintains consistent quality. For businesses requiring custom designs or prototyping, CNC milling offers a low-cost alternative to traditional mold-making techniques.
Automation and Real-Time Monitoring – Enhancing Precision
Modern CNC milling machines incorporate automation features such as robotic arms, automated loaders, and tool changers, allowing manufacturers to perform multiple operations without manual intervention. These systems enable uninterrupted workflows, improving productivity and scalability.
Real-time monitoring systems track tool wear, cutting speeds, and machine performance, providing feedback that helps operators make adjustments during production. These features reduce errors, downtime, and maintenance costs, ensuring consistency and accuracy throughout the production process.
AI integration and smart programming further optimize performance, allowing CNC machines to adapt to material changes, predict failures, and adjust cutting patterns for optimal results. This level of automation makes CNC milling a future-ready technology, capable of handling highly complex designs with minimal supervision.
Sustainability – Eco-Friendly Manufacturing Practices
CNC milling promotes eco-friendly manufacturing by reducing material waste and energy consumption. Unlike casting processes, CNC machining removes only the required material, resulting in less scrap and better resource utilization. Leftover material can also be recycled, minimizing the environmental impact.
Modern CNC machines are equipped with energy-efficient motors and coolant systems, reducing power consumption during operations. Additionally, water-based coolants and biodegradable lubricants replace traditional oil-based fluids, ensuring safer working environments and eco-friendly disposal methods.
By adopting sustainable practices, CNC milling aligns with green manufacturing standards, making it a preferred choice for industries prioritizing environmental responsibility.
Conclusion
CNC milling stands out as a high-precision, flexible, and efficient machining process that meets the demands of modern manufacturing. From automotive components to medical devices and aerospace parts, it delivers quality, durability, and scalability for a variety of industries. With advancements in automation, AI integration, and multi-axis systems, CNC milling continues to evolve, providing cost-effective solutions for complex designs and custom applications. As industries embrace smart manufacturing, CNC milling remains a cornerstone technology for future innovation and growth.
